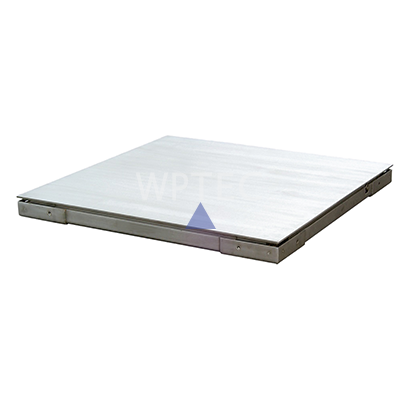

WPD Waterproof Platform Scale

Double layer with frame design, with sensor lateral limit, pit installation, no ramp, no crane, ordinary forklift can achieve easy loading and unloading; choose blind hole sensor, scale body reset well, weighing accuracy better than through-hole sensor.
Low platform structure design. The weighing platform consists of the scale body and the frame, stainless steel scale body。
Special coating protection, laser welded stainless steel sensor, protection class IP68.
Cylindrical head swinging automatic reset mechanism.
Limits formed in one operation, no adjustment required.
Junction box drawer mounting.

Low platform structure design. The weighing platform consists of the scale body and the frame, stainless steel scale body。

Special coating protection, laser welded stainless steel sensor, protection class IP68.

Cylindrical head swinging automatic reset mechanism.

Limits formed in one operation, no adjustment required.

Junction box drawer mounting.

Location: on the ground / outdoor use / factory floor use / wet environment

Industry: Food/Pharmaceutical/Farming etc.

型号 Model	精度 Accuracy	容量 Capacity	分度值 Division	台面 Dimension
WPD0808-1.5	1/3000	1500kg	0.5kg	800*800mm
WPD1010-1.5		1500kg	0.5kg	1000*1000mm
WPD1212-1.5		1500kg	0.5kg	1200*1200mm
WPD1010-3		3000kg	1kg	1000*1000mm
WPD1212-3		3000kg	1kg	1200*1200mm
WPD1515-3		3000kg	1kg	1500*1500mm
WPD1515-6		6000kg	2kg	1500*1500mm
